Qotom Barebone Fanless Mini PC 8x Intel i226-V 2.5G LAN Core i7-10510U i5-8260U Firewall Router Soft Router RS232 Console

$1,645.20 USD

~~$9,871.20 USD~~ $1,645.20 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color Core i7-10510U Core i5-8260U Core i3-10110U Celeron 5205U

SPECIFICATIONS

Brand Name: qotom

Certification: CE

Cooling Mode: Fanless Design

Dimension: 196 x 122 x 47mm (S13)

Extension: 2.5" SATA Connector

Graphics Card Type: Integrated Card

Hard Drive Capacity: 512GB

High-concerned chemical: None

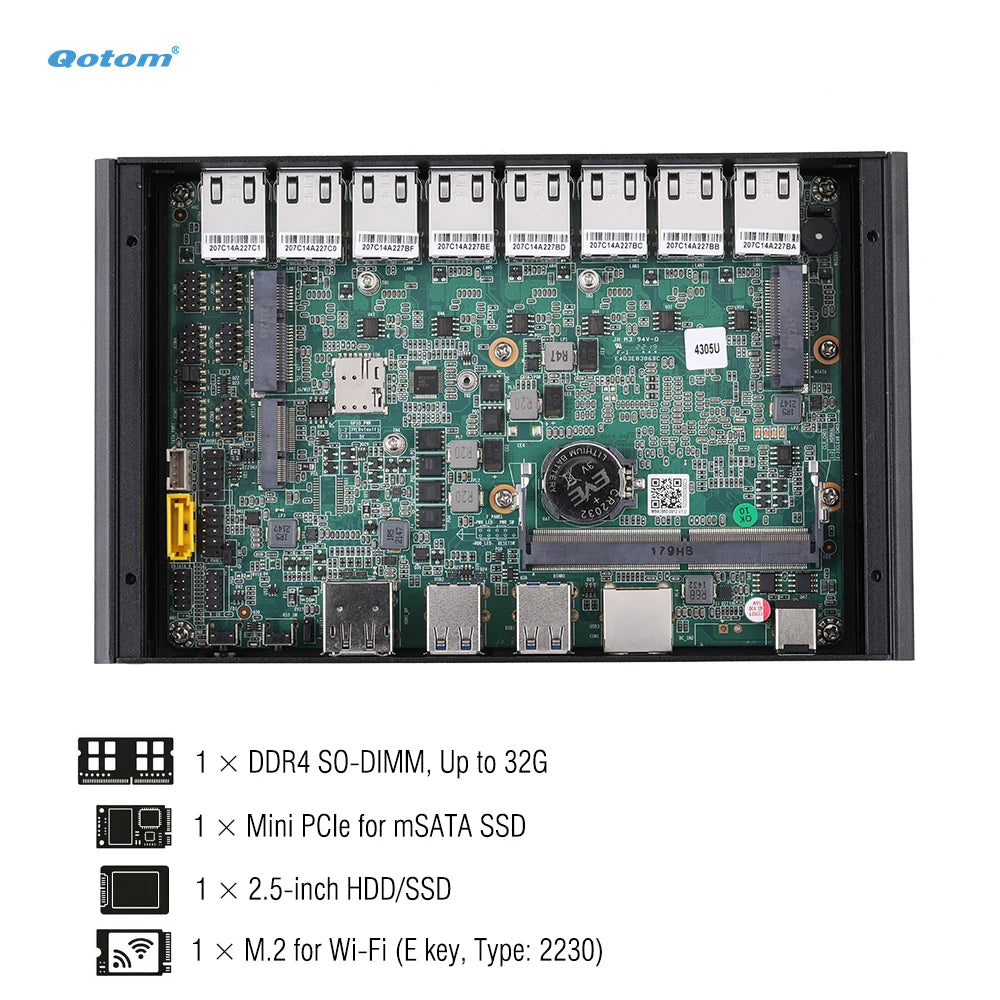

Memory: 1 x DDR4 SO-DIMM Socket, up to 32G, No-ECC

Memory Capacity: 32 GB

Model Number: Q1000GE Series

Onboard LAN: 8 x Intel I226V 2.5G LAN

Operating System: Windows, Linux, pfsense, OPNsense, etc.

Origin: Mainland China

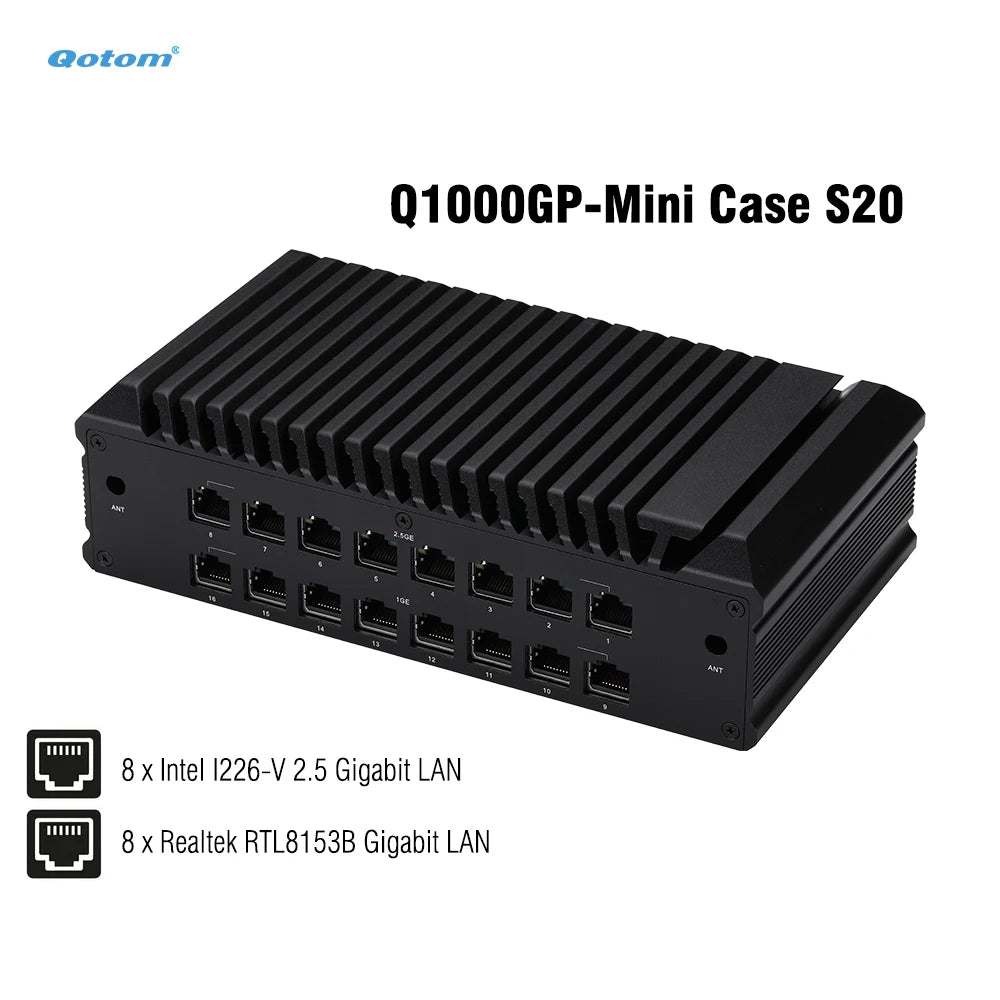

PC case: S13 by default. S20 is optional (in video)

Processor Brand: Intel

Processor Main Frequency: Dual core/ Quad core

Processor Model: 8th/10th Gen Intel Celeron Core i3 i5 i7

Shell Material: Aluminium alloy

Storage: 1 x Mini PCIe for mSATA SSD

Type: Mini Desktop,Mini PC

Use: Commercial

Video Output: 1 x DP, 1 x HD

Warranty: 12 months

Wi-Fi: 1 x M.2 for Wi-Fi, E key, Type: 2230

Intel Processor Onboard

• Q1015GE: Intel Celeron Processor 5205U, 2M Cache, Dual Core 1.9 GHz
• Q1035GE: Intel Core i3-10110U, 4M Cache, Dual core 2.1 GHz, up to 4.1 GHz
• Q1052GE: Intel Core i5-8260U, 6M Cache, Quad core 1.6 GHz, up to 3.9 GHz
• Q1078GE: Intel Core i7-10510U, 8M Cache, Quad core 1.8 GHz, up to 4.9 GHz

• CPU TDP: 15W
• Intel AES New Instructions: Yes

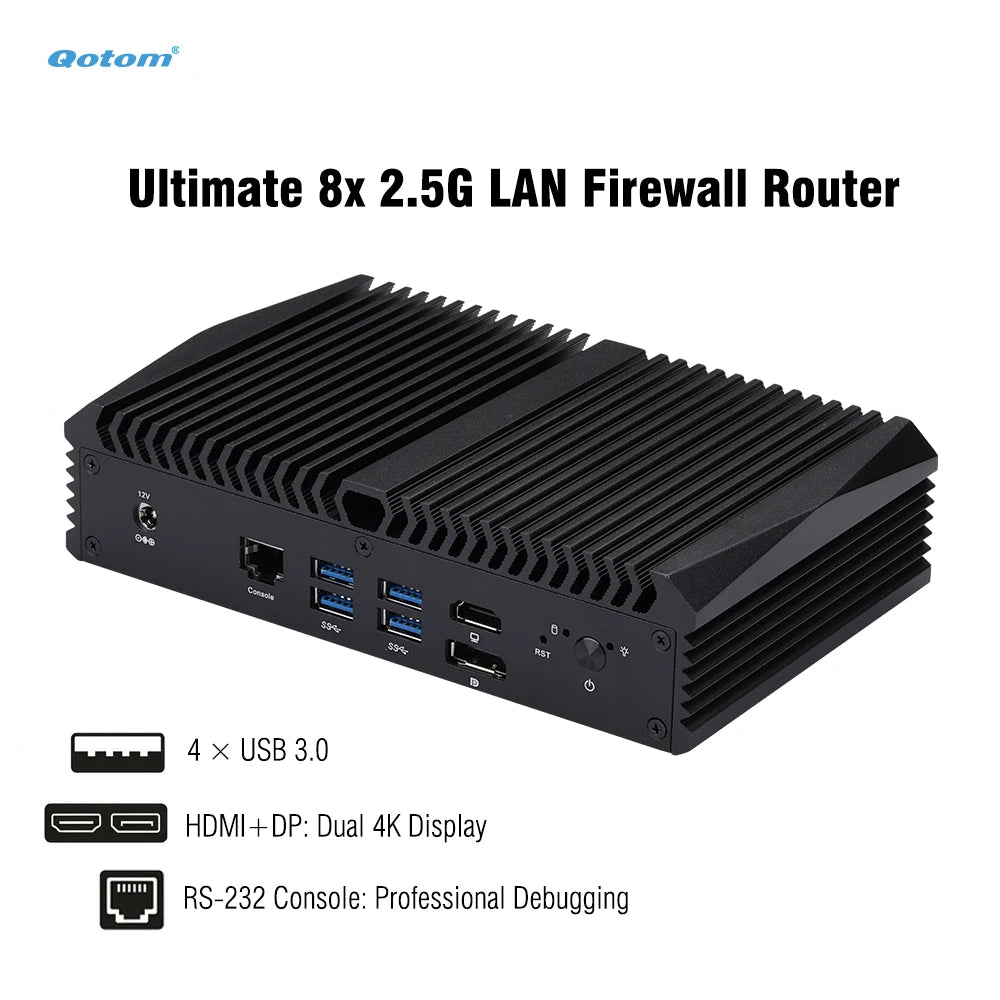

Ports:

• Power Button
• Reset Button
• 1 x Power LED, 1 x HDD LED
• 4 x USB 3.0
• 1 x DC Jack
• 1 x HD, 1 x DP
• 1 x RS-232 Port (RJ-45 )
• 8 x Intel i226V 2.5 Gigabit LAN

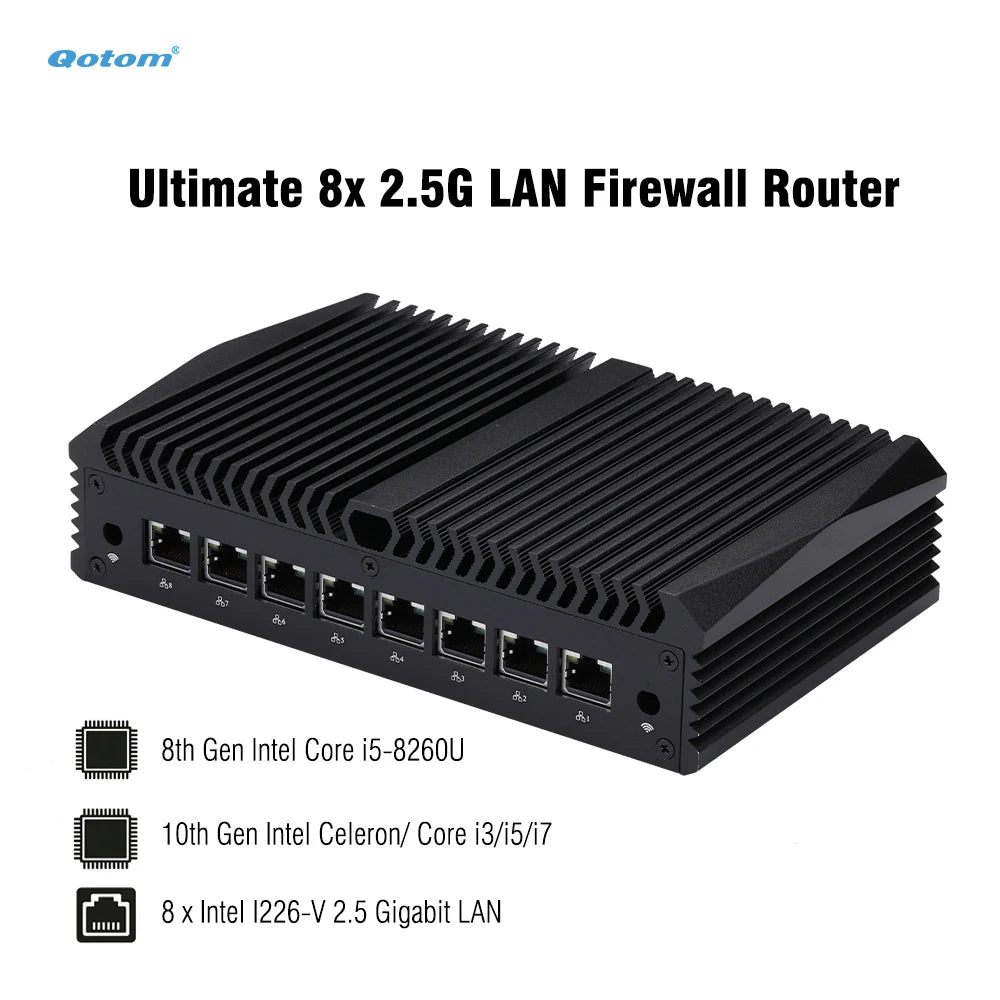

• Extreme Networking: 8 x Intel i226-V 2.5GbE Ports

Featuring 8 independent Intel i226-V 2.5G LAN ports, this device offers 2.5x faster speeds than Gigabit. It is the ultimate hardware for advanced firewalls (pfSense, OPNsense), multi-WAN aggregation, and network isolation, ensuring high-speed, low-latency connectivity for professional setups.

• Premium Fanless Design & Aluminium Alloy Case

Crafted with a rugged aluminium alloy shell, our fanless design ensures 100% silent operation and superior heat dissipation. With no moving parts, it prevents dust buildup and hardware wear, making it perfect for 24/7 continuous operation in noise-sensitive or industrial environments.

• High-Performance Coffee Lake/ Comet Lake Processing

Powered by Intel 8th/10th Gen Core i7/i5/i3 processors, this mini PC delivers exceptional computing power for virtualization (Proxmox, ESXi), Docker containers, and complex routing tasks. It supports DDR4 SO-DIMM and mSATA SSD for a fast and responsive system experience.

• Professional Management: RS-232 Console & Auto-Boot

Designed for network experts, the integrated RS-232 (RJ-45) Console port allows for direct CLI management without a monitor. The motherboard includes an "Automatically Boot Jumper," ensuring the device reboots instantly after power failure for reliable, unattended operation.

• Versatile 4K Display Output: HD + DisplayPort

Equipped with HD and DP ports supporting 4K resolution, this unit is not just a router but an All-in-One (AIO) server. Effortlessly switch between a high-speed firewall, a media home theater (HTPC), or a desktop workstation, all while maintaining a compact footprint.

Packing

• 1 x Mini PC
• 1 x Power supply: adapter and plug
• 1 x VESA bracket & screws
• 1 x Neutral packaging box

We have US/ UK/ EU/ AU/ IT/CH plug and will choose them according to the destination.
