SPECIFICATIONS

Brand Name: KUNTENG E-BIKE

Choice: yes

High-concerned chemical: None

Origin: Mainland China

semi_Choice: yes

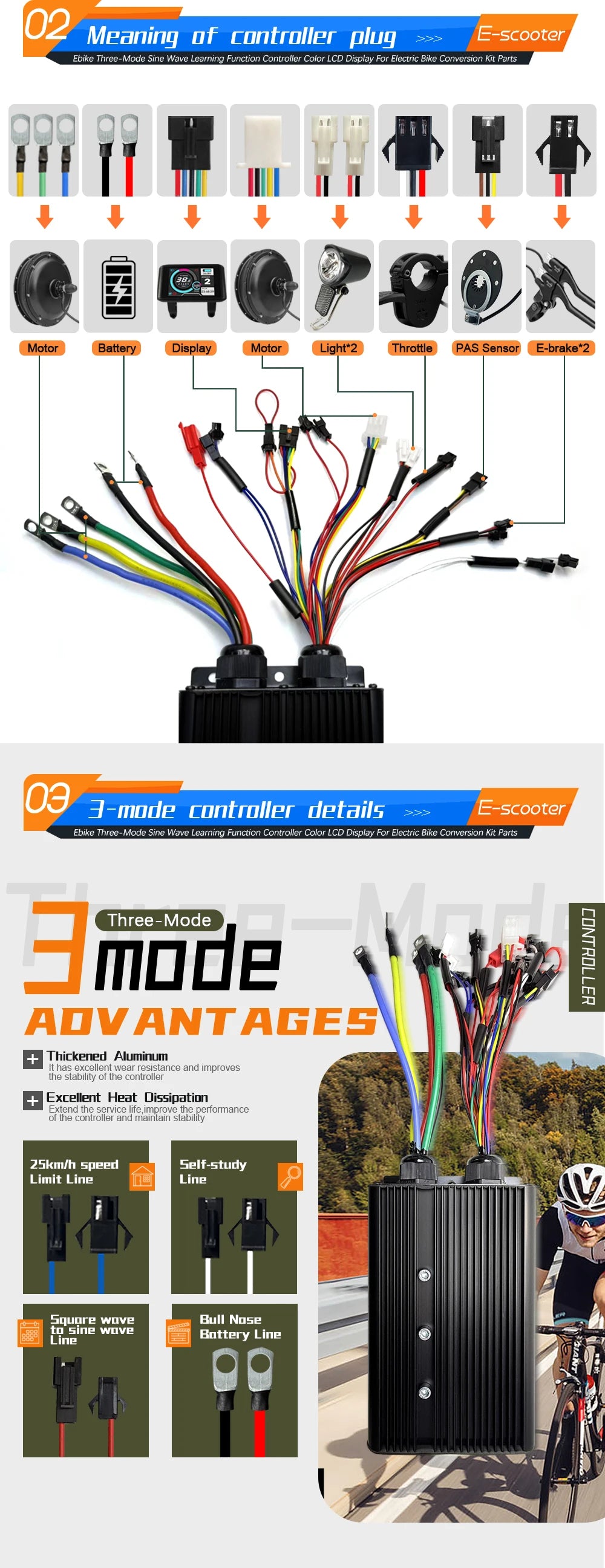

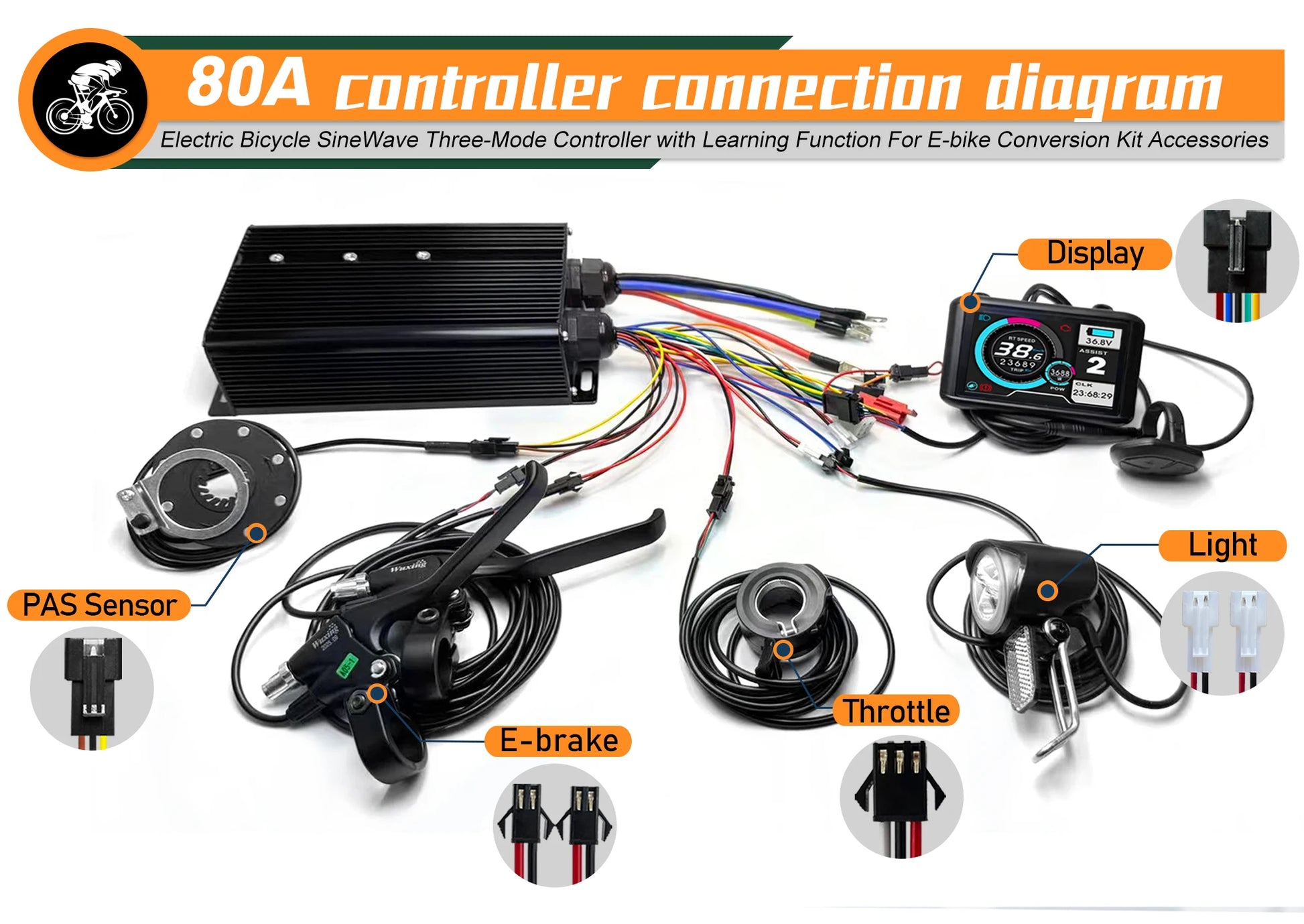

80A Controller connection diagram：
★★★When purchasing a controller with a 80A 3mo ordinary plug with a headlight module, please check that the lamp power of the electric bicycle you purchased cannot exceed 7.5w, otherwise the 80A 3mo ordinary plug with a headlight module will not work!!!

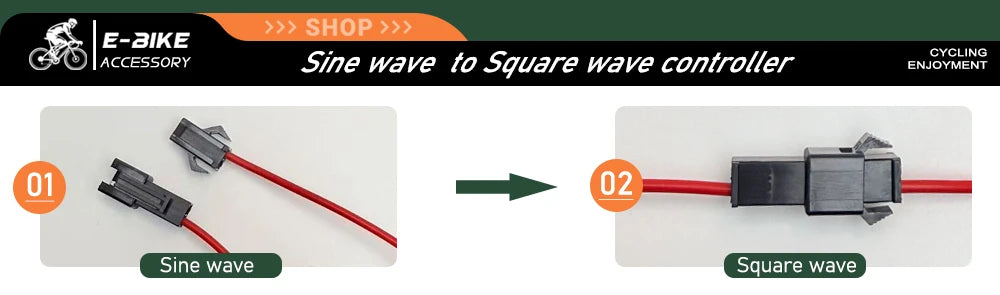

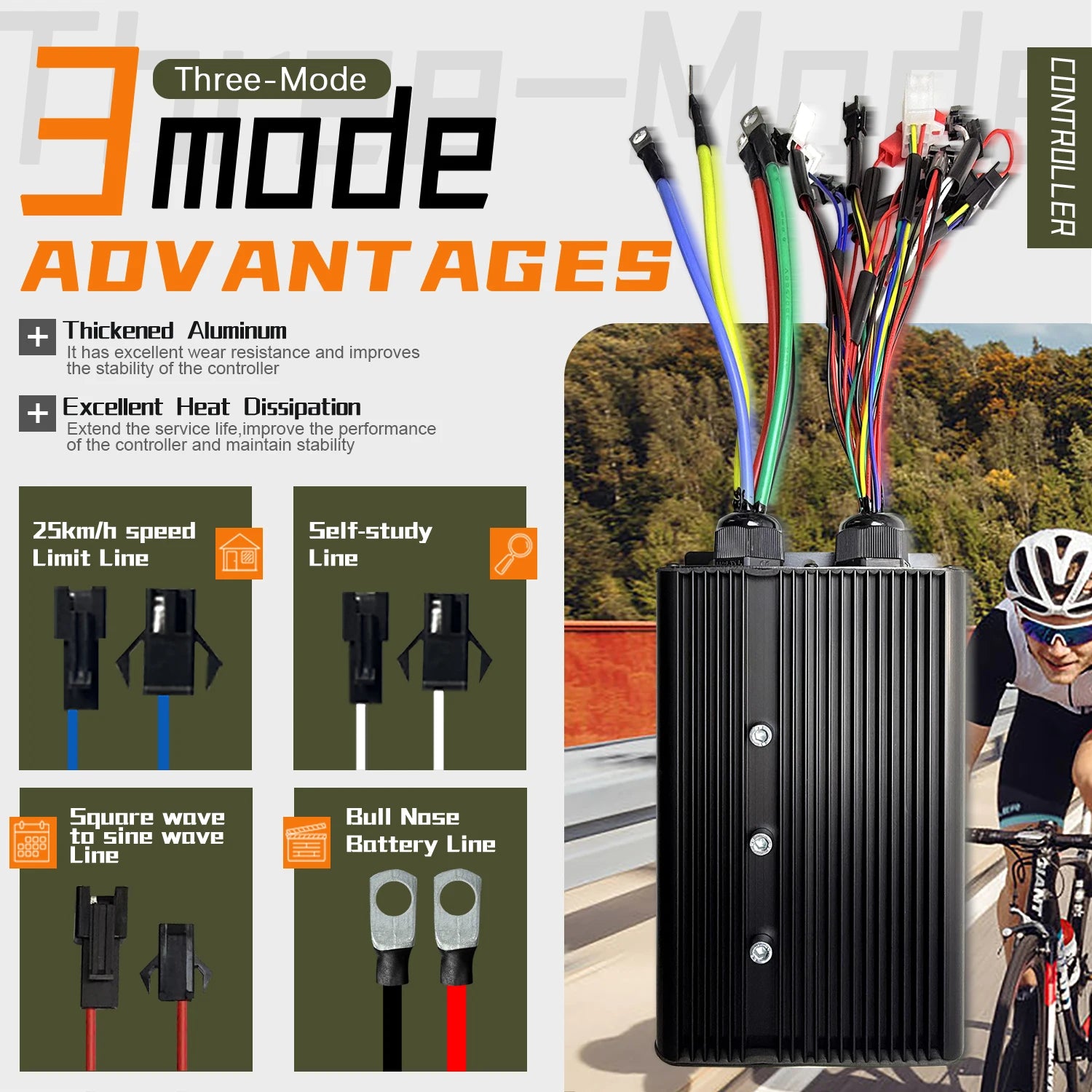

★★★The 80A controller is sine wave controller. If you want to turn it into square wave , connect the two 1-pin red wires on the controller to make it a square wave controller. If you don't know how to connect it, you can consult customer service（as shown in the figure below）

  Attention

●Bull Nose Battery Connector,If you need to change the connector , please contact customer service

Features:

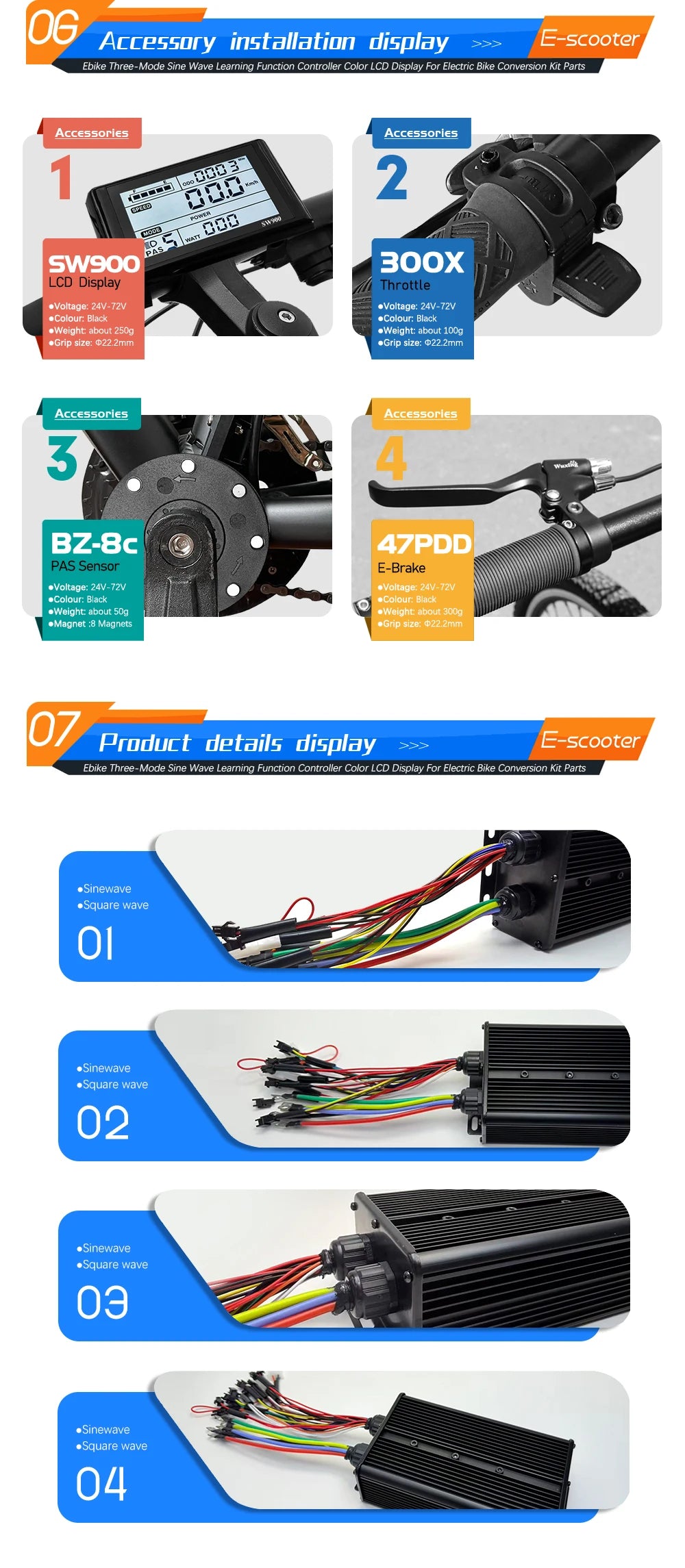

●The Display is easy to install, with clear screen display and powerful functions

●Brushless Hub Motor for 3000W/5000W, Electric Bike, Electric Bike Kit

●The controller has a headlight function, making it more convenient and safe for you to ride at night

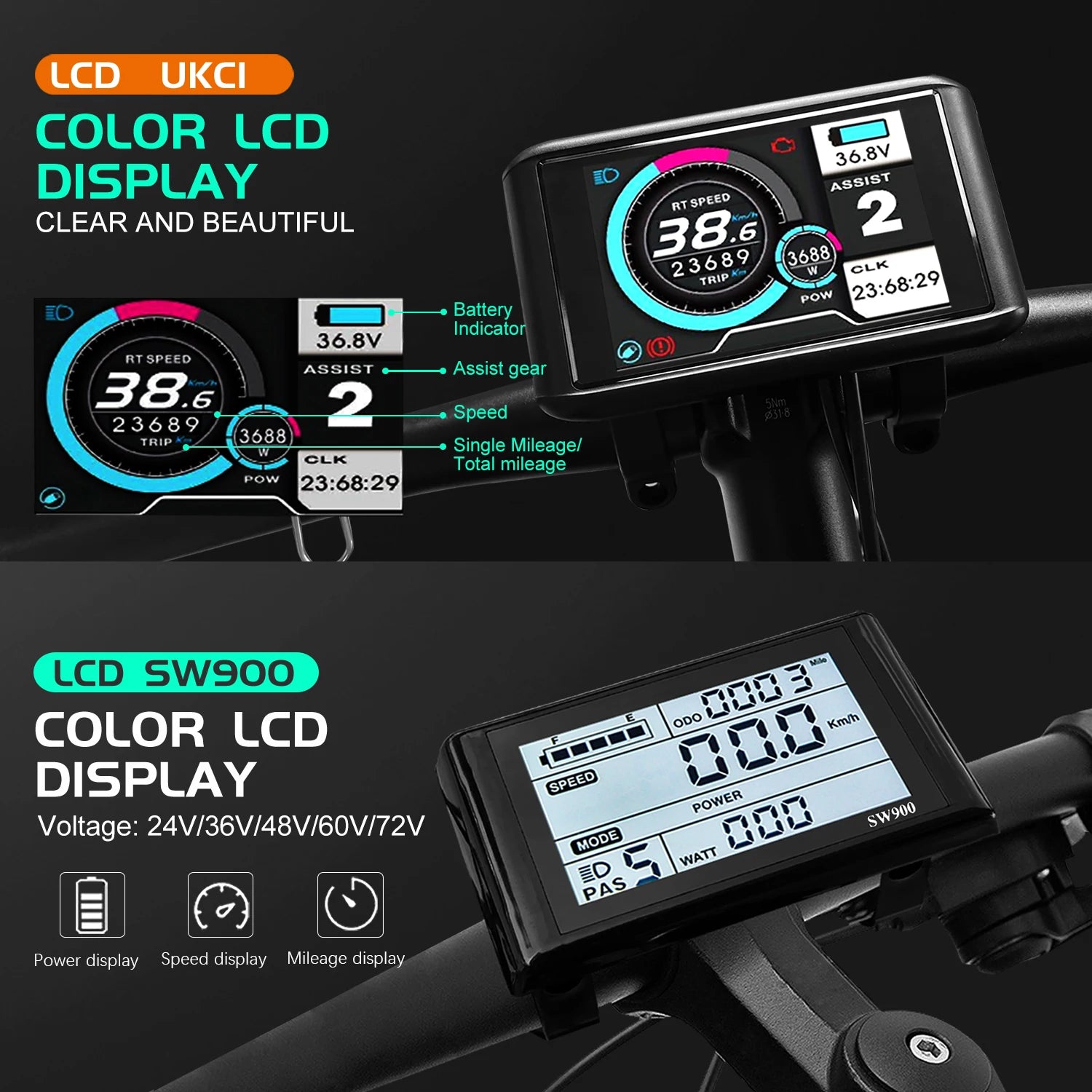

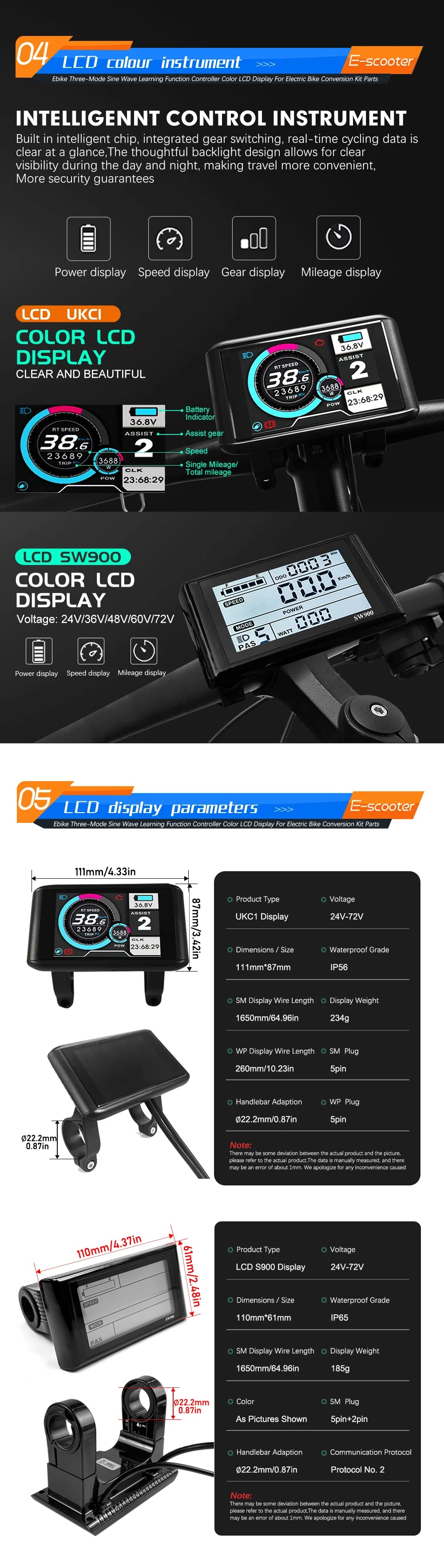

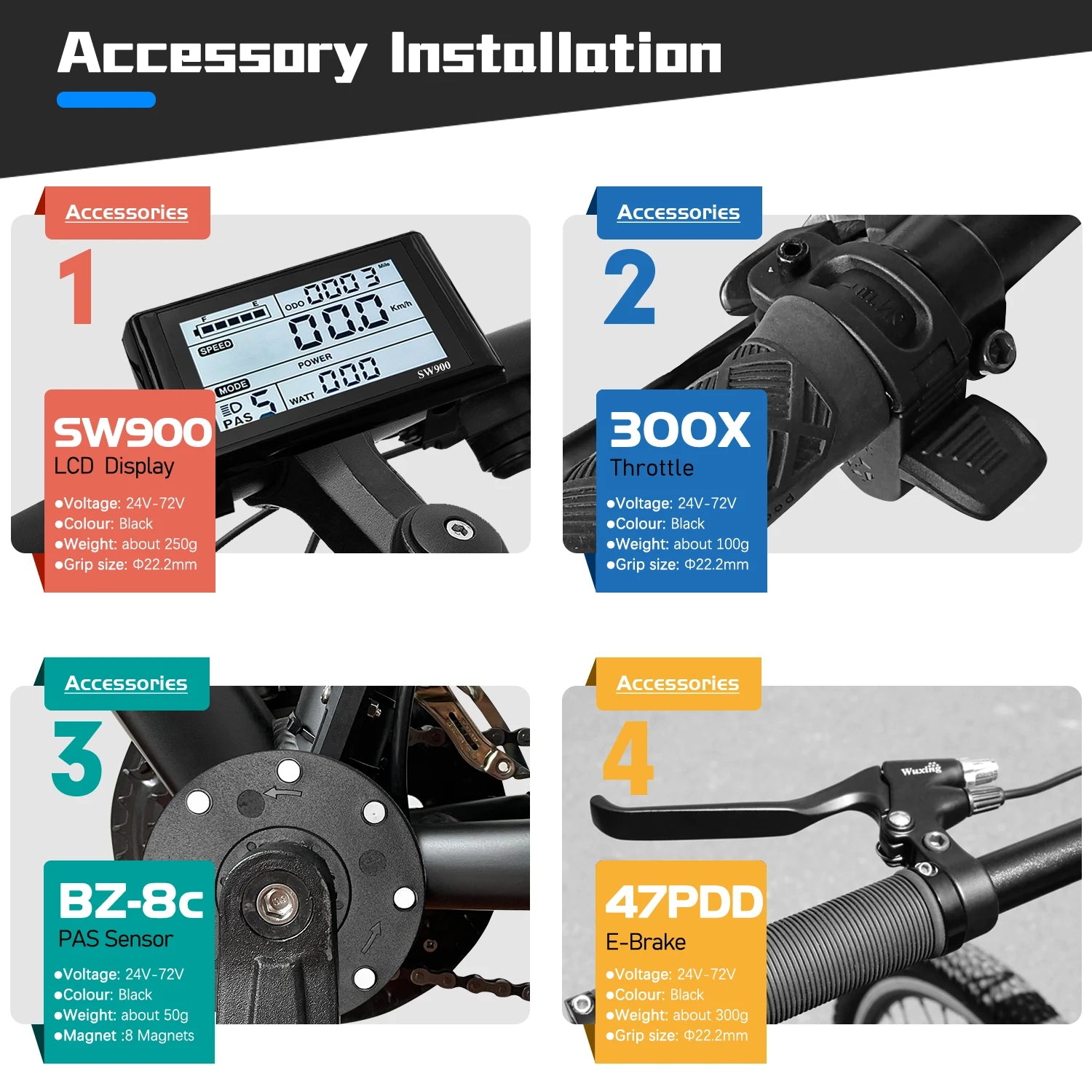

  LCD Display

●Type :LCD Color Display

●Voltage :24V 36V 48V 52V 60V 72V

●Plug :5Pin Female SM Plug

●Holder Diameter :φ22mm

●Cable Length:30cm ( SM )

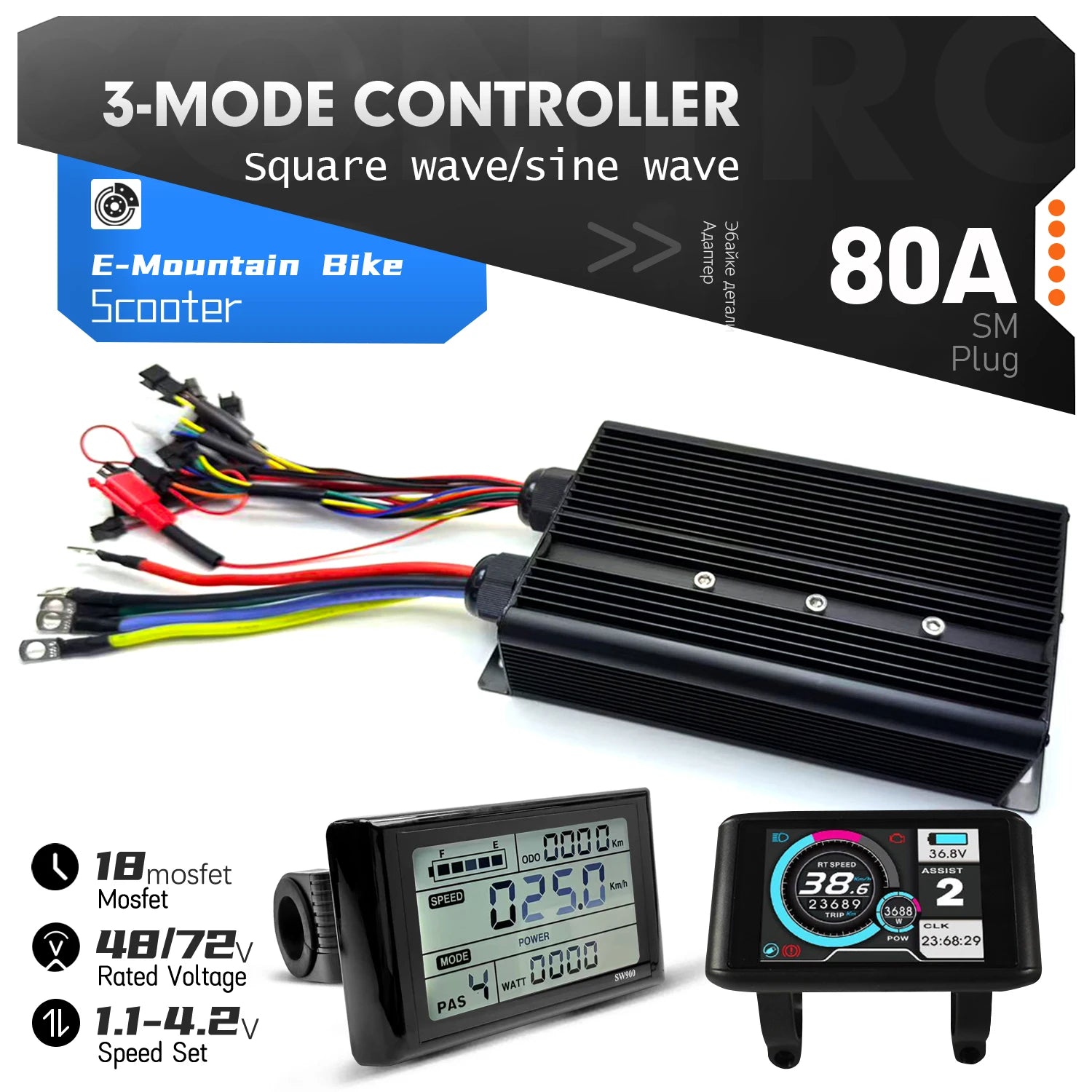

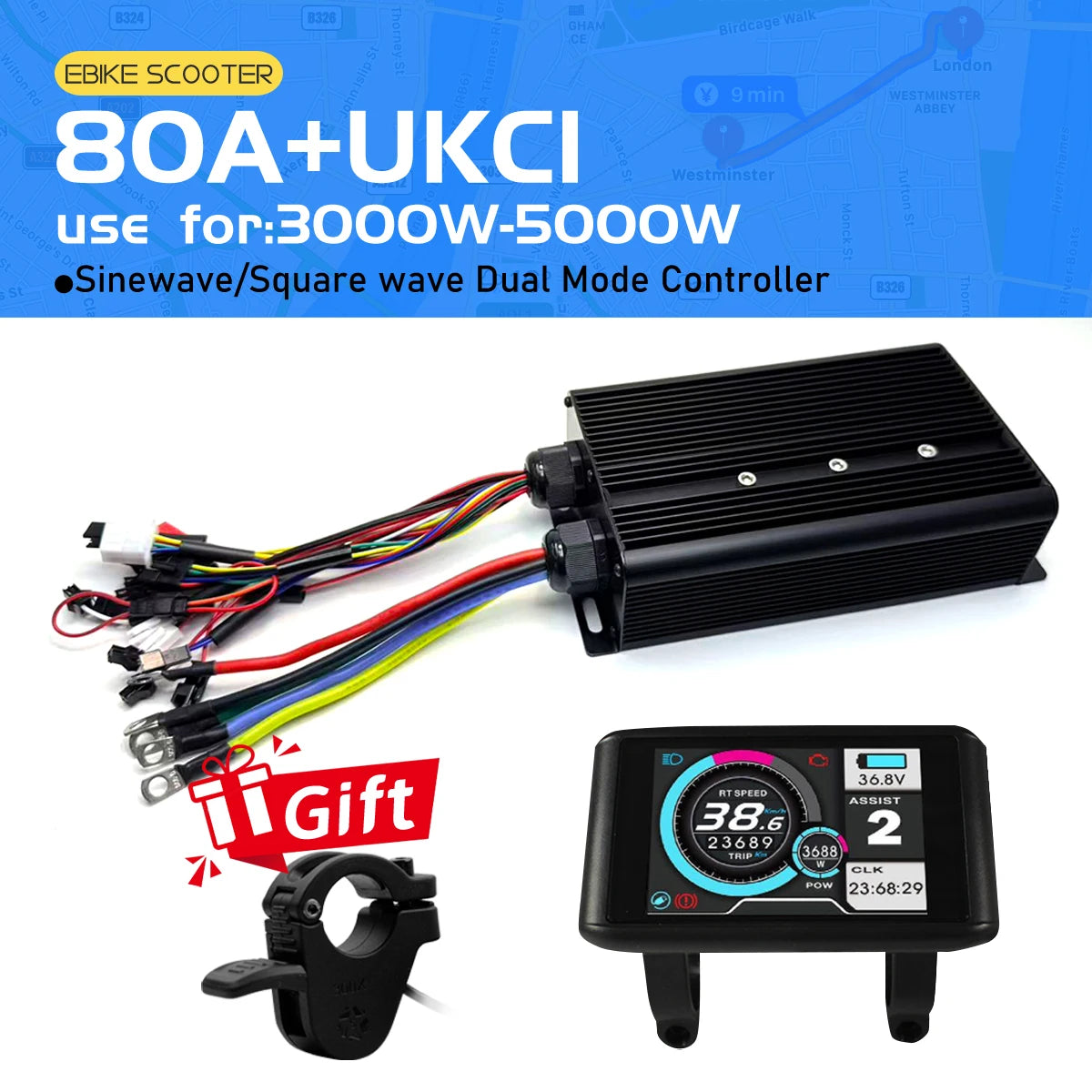

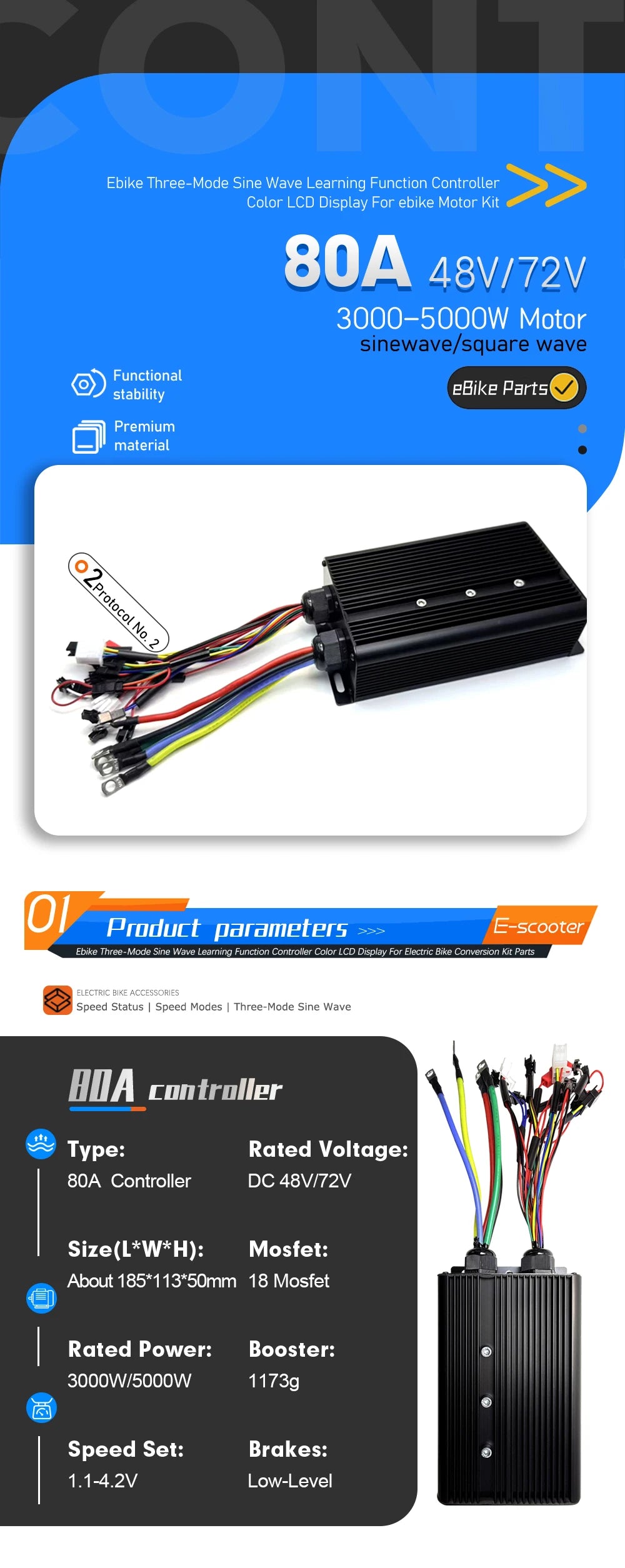

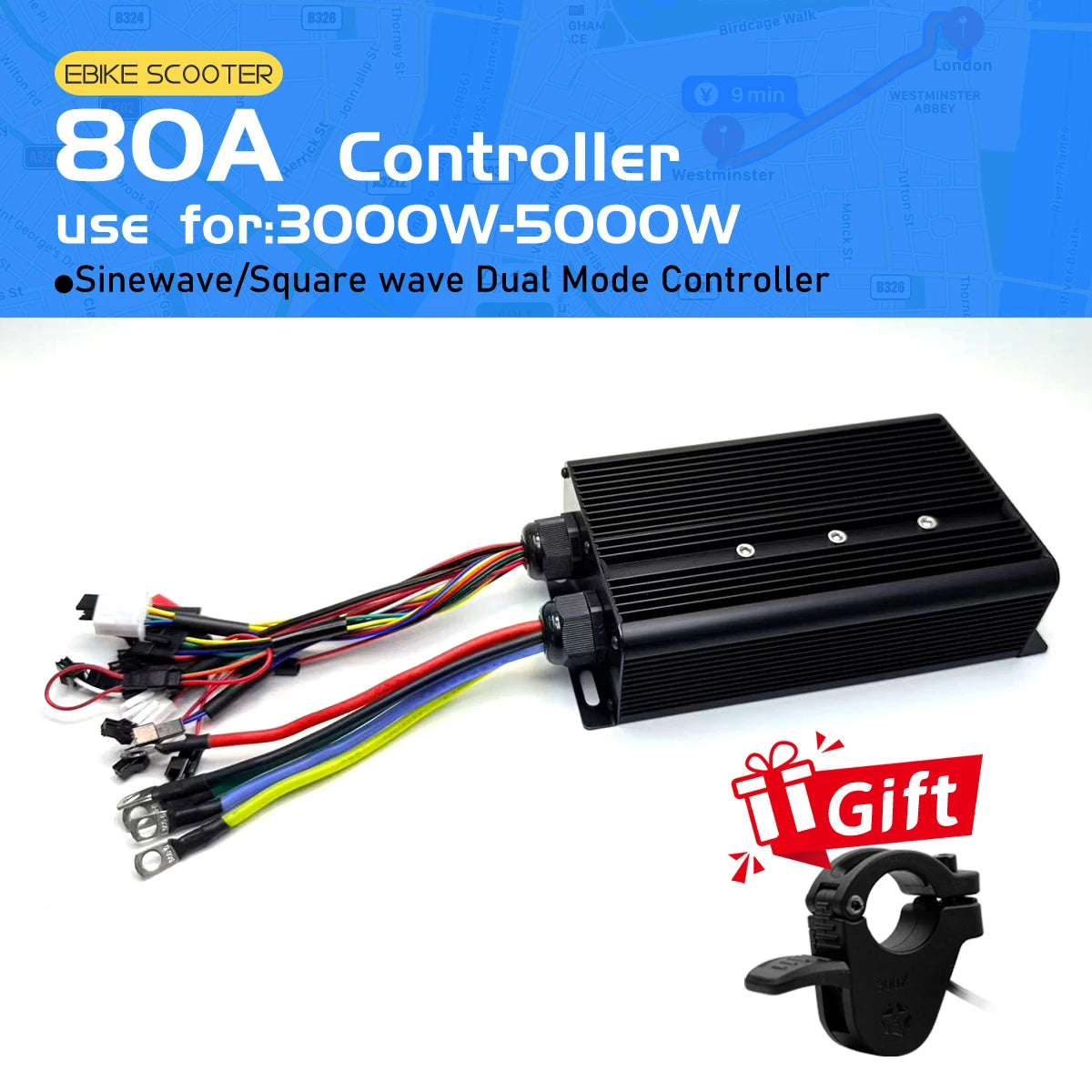

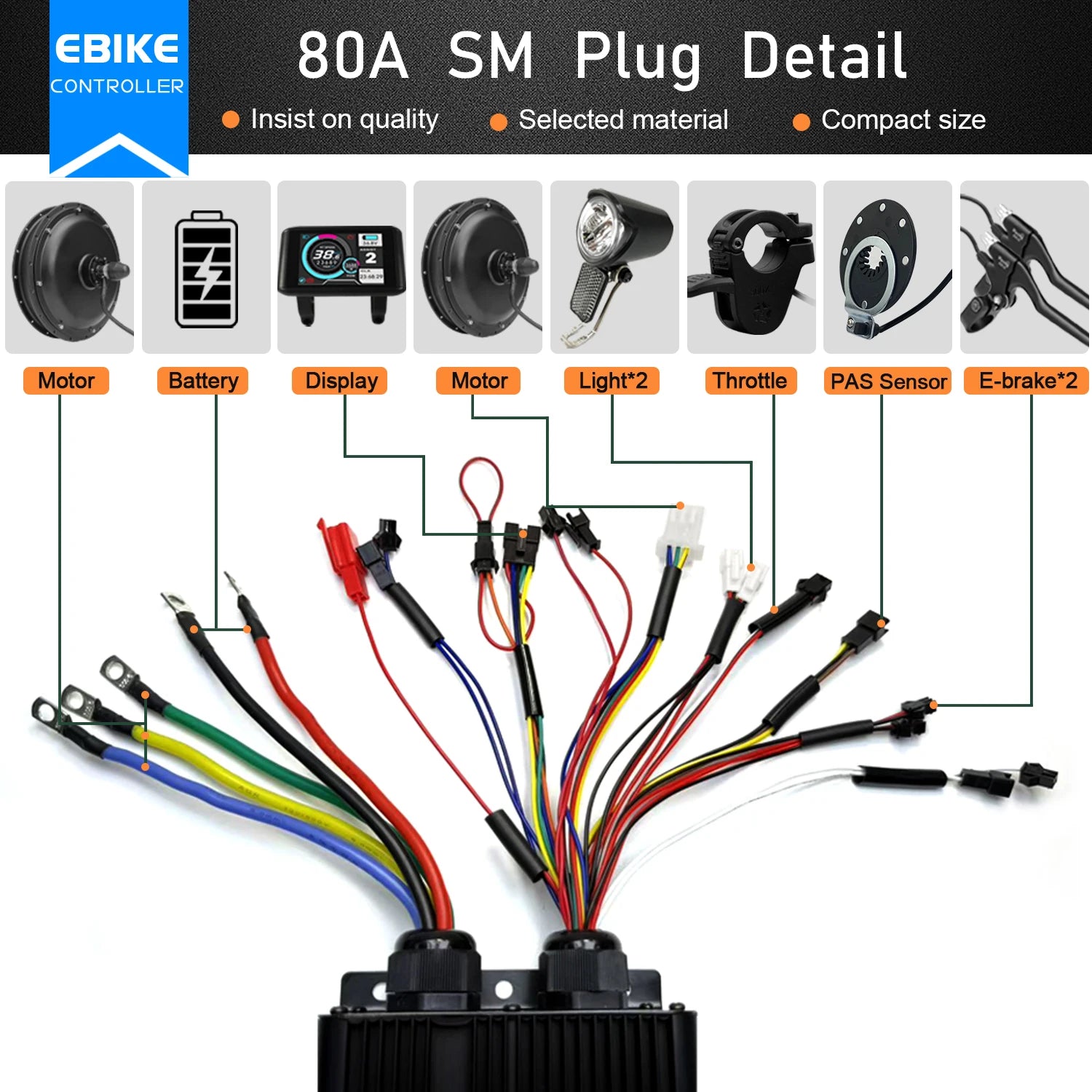

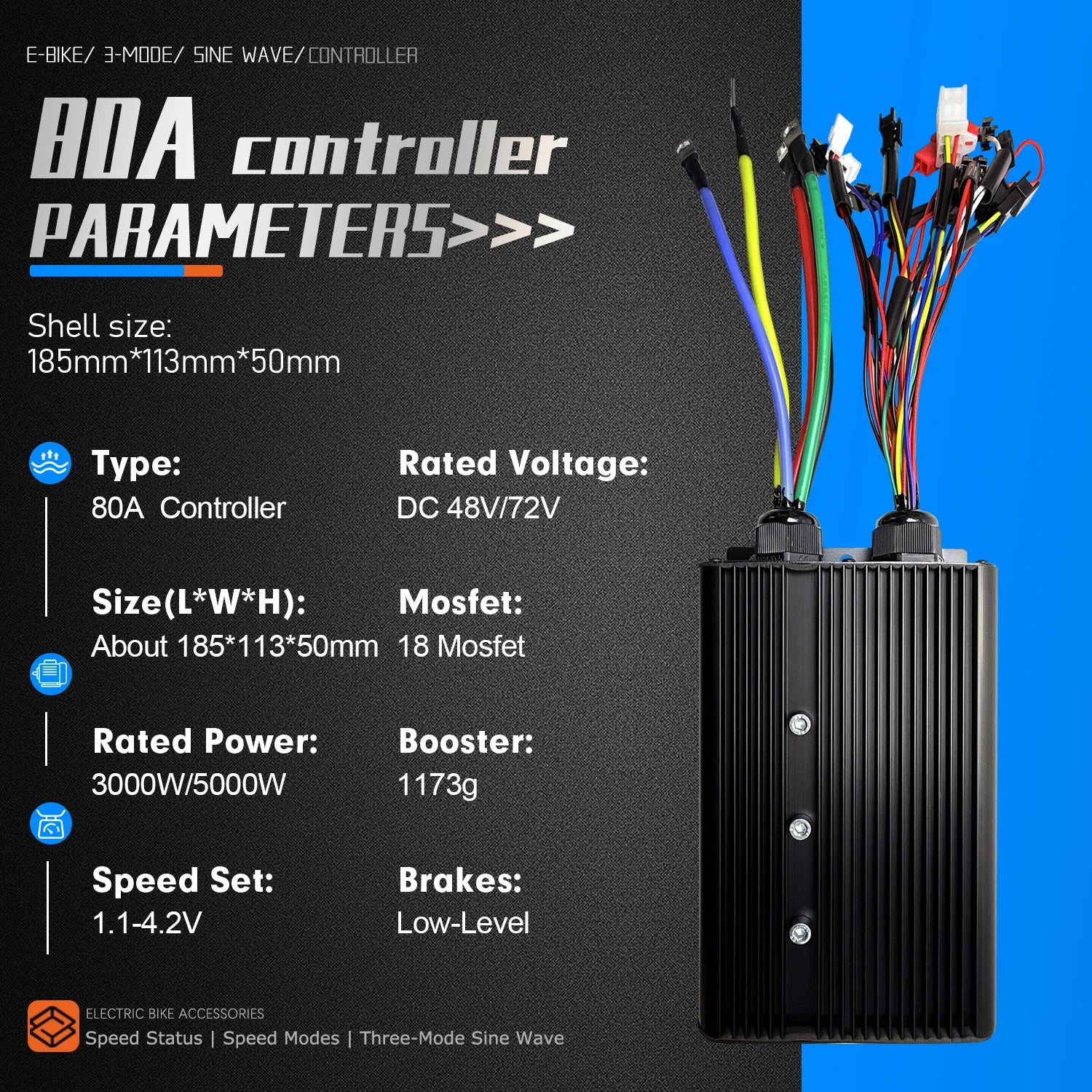

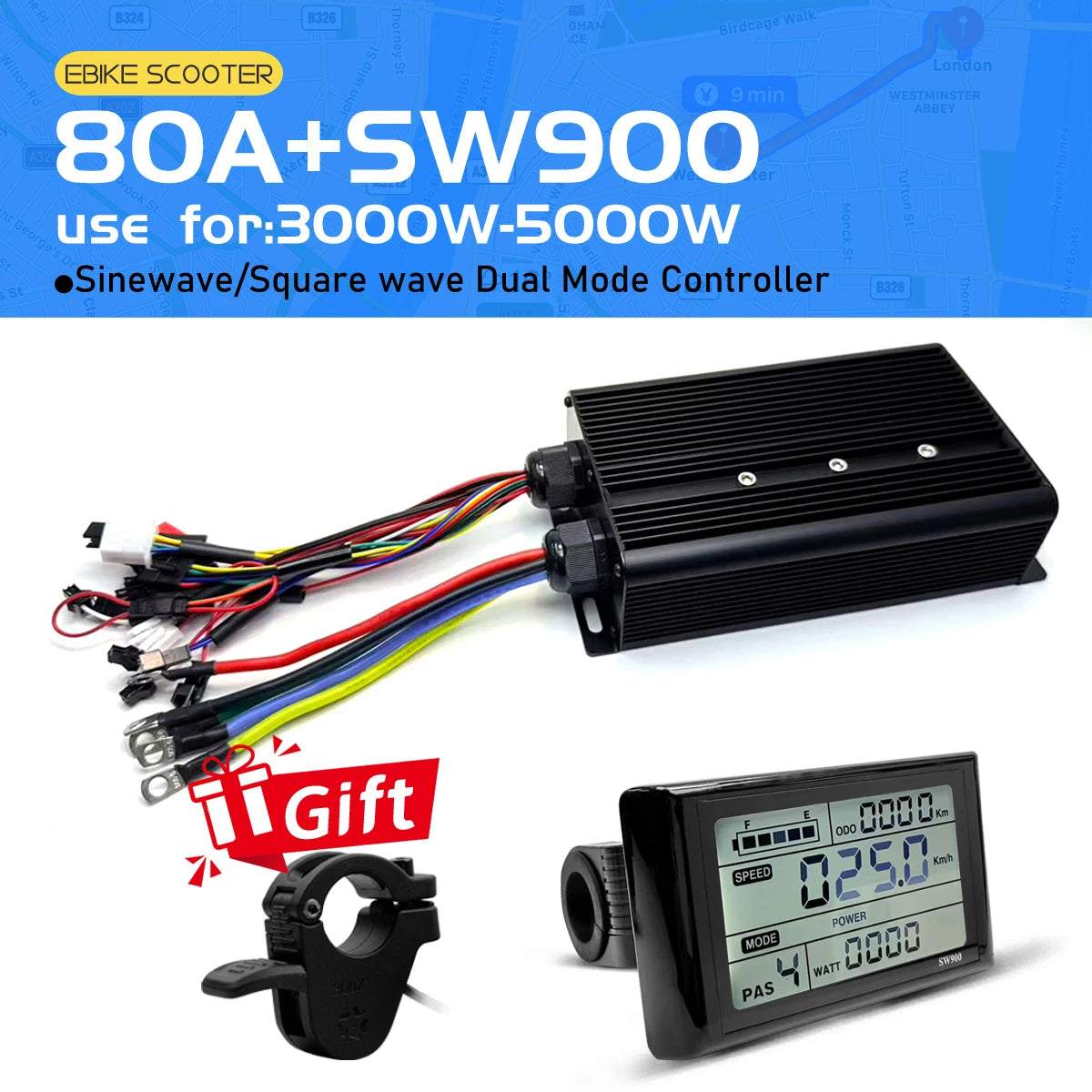

  80A Controller :

●Type: 80A Controller SM Plug

●Size(L*W*H):183*113*55mm

●Rated Power:3000W

●Speed Set:1.1-4.2V

●Mosfet:18 Mosfet

●Booster:1:5

●Brakes:Low-Level

●Rated Voltage:DC48V/72V

●Compatible with motors with or without Hall

●SM Controller line length:150mm/5.9in

●With motor forward and reverse learning function

●Can manually connect to the 25km/h speed limit line
